cppcode/rgbcubeIPOL.h File Reference

This graph shows which files directly or indirectly include this file:

Functions
int	count_RGBcolors (unsigned char imR, unsigned char imG, unsigned char *imB, int w, int h)
	Count the number of different colors in an image.
void	PCAviews (unsigned char imR, unsigned char imG, unsigned char imB, int w, int h, unsigned char refR, unsigned char refG, unsigned char refB, int wref, int href, unsigned char im12R, unsigned char im12G, unsigned char im12B, unsigned char im13R, unsigned char im13G, unsigned char im13B, unsigned char im23R, unsigned char im23G, unsigned char *im23B, int wout, int hout)
	Create 3 images displaying the projections of the color cube of an image onto the 3 planes defined by the principal components of the color distribution in RGB space.
void	PCAviewsB (unsigned char imR, unsigned char imG, unsigned char imB, int w, int h, unsigned char refR, unsigned char refG, unsigned char refB, int wref, int href, unsigned char im123R, unsigned char im123G, unsigned char *im123B, int wout, int hout)
	Concatenates into one single output image the 3 projections of the RGB color distribution of an input image onto the 3 planes defined by the principal components of the color distribution of a reference image (eventually, reference and input images may be the same).
void	PCAviews_density (unsigned char imR, unsigned char imG, unsigned char imB, int w, int h, unsigned char refR, unsigned char refG, unsigned char refB, unsigned char im12R, unsigned char im12G, unsigned char im12B, unsigned char im13R, unsigned char im13G, unsigned char im13B, unsigned char im23R, unsigned char im23G, unsigned char im23B, int wout, int hout, int rdst, unsigned char cumdsty, unsigned char Idsty)
	Create 3 images displaying the densities of the colors in the color cube of an image, projected onto the 3 planes defined by the principal components of the color distribution in RGB space.
void	PCAviews_densityB (unsigned char imR, unsigned char imG, unsigned char imB, int w, int h, unsigned char refR, unsigned char refG, unsigned char refB, unsigned char im123R, unsigned char im123G, unsigned char im123B, int wout, int hout, int rdst, unsigned char cumdsty, unsigned char Idsty)
	Concatenates into one single output image the 3 projections of the density of the RGB color distribution of an input image onto the 3 planes defined by the principal components of the color distribution of a reference image (eventually, reference and input images may be the same).
void	rmHighGradHue (unsigned char imR, unsigned char imG, unsigned char imB, unsigned char lowR, unsigned char lowG, unsigned char lowB, unsigned char highR, unsigned char highG, unsigned char *highB, int w, int h, float thgrad, float thsat)
int	filtercolor (unsigned char inR, unsigned char inG, unsigned char inB, unsigned char outR, unsigned char outG, unsigned char outB, int w, int h, int type, float eitmax, int r, int rsim)
	Filter the cloud of RGB points associated to a color image by iteratively projecting the points to a line (1D projection) or a plane (2D projection) computed using Principal Components Analysis of a local neighborhood of the point in RGB space.
void	mergeimages (unsigned char in1R, unsigned char in1G, unsigned char in1B, unsigned char in2R, unsigned char in2G, unsigned char in2B, unsigned char outR, unsigned char outG, unsigned char *outB, int w, int h)
	Create a new image identical to the first input image except for pixels with (0, 0, 0) RGB value which are replaced by the pixels of the second input image.
void	densityImage (unsigned char R, unsigned char G, unsigned char B, int w, int h, unsigned char I, int rdst, unsigned char logscale)
	Create an output image where the color of each pixel has been replaced by a brightness value proportional to the density of the color (white: high density, black: low density).
int	RGBviews_sequence (unsigned char imR, unsigned char imG, unsigned char imB, int w, int h, unsigned char viewsR, unsigned char viewsG, unsigned char **viewsB, int wview, int hview, unsigned char displayDensity)
	Generate a rotating sequence of views of the RGB cube.
int	RGBviews_sequence_params (const char *paramsfile)
	Generate the parameters of the projection planes for a rotating sequence of views of the RGB cube.
void	delete_views_sequence (unsigned char viewR, unsigned char viewG, unsigned char **viewB, int nviews)
	Delete data structure storing 3D views of the RGB cube.
void	compute_RGB_PCA (unsigned char R, unsigned char G, unsigned char *B, int npoints, float &Rcm, float &Gcm, float &Bcm, float &vp1, float &vp2, float &vp3, float vc1[3], float vc2[3], float vc3[3])
	Principal Components Analysis (PCA) of the cloud of RGB points associated to a color image.
void	projectRGBcube (unsigned char R, unsigned char G, unsigned char B, int npoints, unsigned char I, unsigned char Rout, unsigned char Gout, unsigned char *Bout, int wout, int hout, float M[3], float u[3], float v[3])
	Create image displaying the projection of the color cube of a color image onto a plane (rescale projected points to fit the output image size).
void	projectRGBcubeB (unsigned char R, unsigned char G, unsigned char B, int npoints, unsigned char I, unsigned char Rout, unsigned char Gout, unsigned char *Bout, int wout, int hout, float M[3], float u[3], float v[3])
	Create image displaying the projection of the color cube of a color image onto a plane (in this case the center of projection is located at the center of the output image, which was not necessarily the case in 'projectRGBcube').
void	projectRGBdensities (unsigned char R, unsigned char G, unsigned char B, int npoints, unsigned char Rout, unsigned char Gout, unsigned char Bout, int wout, int hout, float M[3], float u[3], float v[3], float ***dsty, float &maxdsty, unsigned char logscale)
	Create image displaying the projection of the color cube of a color image onto a plane. Each output image pixel is displayed with a grey level proportional to the cumulated color density of the points projected onto that pixel (X-rays projection).
float	diffRMSE (unsigned char R1, unsigned char G1, unsigned char B1, unsigned char R2, unsigned char G2, unsigned char B2, int w, int h, unsigned char use_voxel, float &dmean)
	Compute Root Mean Square Error between two images.
void	RGBcube2PLY (unsigned char R, unsigned char G, unsigned char B, int npoints, unsigned char I, const char *nameout)
	Create a PLY file storing the RGB color cube (including its edges) (optionally displaying density information).
void	RGBcube2VRML2 (unsigned char R, unsigned char G, unsigned char B, int npoints, unsigned char I, const char *nameout)
	Create a VRML2.0 file storing the RGB color cube (including its edges) (optionally displaying density information).

Function Documentation

void compute_RGB_PCA	(	unsigned char *	R,
		unsigned char *	G,
		unsigned char *	B,
		int	npoints,
		float &	Rcm,
		float &	Gcm,
		float &	Bcm,
		float &	vp1,
		float &	vp2,
		float &	vp3,
		float	vc1[3],
		float	vc2[3],
		float	vc3[3]
	)

Principal Components Analysis (PCA) of the cloud of RGB points associated to a color image.

Parameters:

`[in]`	R,G,B	color channels of the image
`[in]`	npoints	number of image pixels=number of color points
`[out]`	Rcm,Gcm,Bcm	center of mass of the color distribution in RGB space
`[out]`	vp1,vp2,vp3	eigenvalues associated to the principal components
`[out]`	vc1,vc2,vc3	eigenvectors (unitary) associated to the principal components

Definition at line 1025 of file rgbcubeIPOL.cpp.

Here is the call graph for this function:

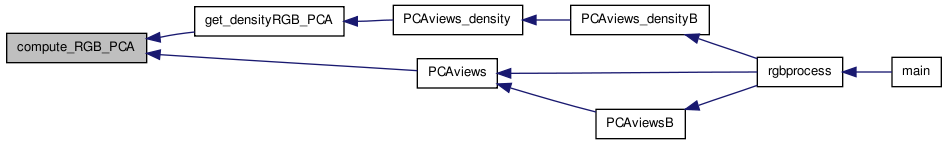

Here is the caller graph for this function:

int count_RGBcolors	(	unsigned char *	imR,
		unsigned char *	imG,
		unsigned char *	imB,
		int	w,
		int	h
	)

Count the number of different colors in an image.

Parameters:

`[in]`	imR,imG,imB	color channels of the imput image
`[in]`	w,h	image dimensions

Returns:: number of colors

Definition at line 47 of file rgbcubeIPOL.cpp.

Here is the caller graph for this function:

void delete_views_sequence	(	unsigned char **	viewR,
		unsigned char **	viewG,
		unsigned char **	viewB,
		int	nviews
	)

Delete data structure storing 3D views of the RGB cube.

Parameters:

`[in]`	viewR,viewG,viewB	arrays of data for R, G and B channels
`[in]`	nviews	number of views

Definition at line 998 of file rgbcubeIPOL.cpp.

void densityImage	(	unsigned char *	R,
		unsigned char *	G,
		unsigned char *	B,
		int	w,
		int	h,
		unsigned char *	I,
		int	rdst,
		unsigned char	logscale
	)

Create an output image where the color of each pixel has been replaced by a brightness value proportional to the density of the color (white: high density, black: low density).

The density of a color C (in RGB space) is defined as

$\delta(C)=\sum_{C' \in {\cal S}} e^{-d(C, C')^2/h^2}$

where ${\cal S}$ is the set of neighbors of C $ d(C, C') $ is the Euclidean distance between colors C and C' in RGB space and $ h $ is a weighting parameter

The set of neighbors of a color C is composed of all the colors at L1-distance below some threshold $ r $ . Each color appears in the set of neighbors as many times as it is present in the image (i.e. the frequency of the color is taken into account in the computations). Tipically the weighting parameter is $h = r/\sqrt{2}$ so the weight of the furthest neighbors is $e^{-2}=0.135$

Parameters:

`[in]`	R,G,B	color channels of the first input image
`[in]`	w,h	image size
`[out]`	I	output gray level image
`[in]`	rdst	radius of neighborhood around each color point needed to compute its density
`[in]`	logscale	if logscale=1 display values using logarithmic scale, otherwise use linear scale

See also:: RGBdensities

Definition at line 568 of file rgbcubeIPOL.cpp.

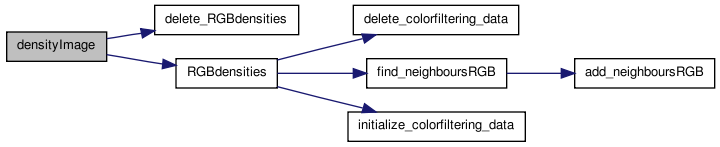

Here is the call graph for this function:

Here is the caller graph for this function:

float diffRMSE	(	unsigned char *	R1,
		unsigned char *	G1,
		unsigned char *	B1,
		unsigned char *	R2,
		unsigned char *	G2,
		unsigned char *	B2,
		int	w,
		int	h,
		unsigned char	use_voxel,
		float &	dmean
	)

Compute Root Mean Square Error between two images.

Parameters:

`[in]`	R1,G1,B1	color channels of the first image
`[in]`	R2,G2,B2	color channels of the first image
`[in]`	w,h	size of the images
`[in]`	use_voxel	if use_voxel=1 compute differences between color clouds, without taking into account the number of pixels associated to each color
`[out]`	dmean	average distance between the colors of both images

Returns:: RMSE

Definition at line 1676 of file rgbcubeIPOL.cpp.

Here is the caller graph for this function:

int filtercolor	(	unsigned char *	inR,
		unsigned char *	inG,
		unsigned char *	inB,
		unsigned char *	outR,
		unsigned char *	outG,
		unsigned char *	outB,
		int	w,
		int	h,
		int	type,
		float	eitmax,
		int	r,
		int	rsim
	)

Filter the cloud of RGB points associated to a color image by iteratively projecting the points to a line (1D projection) or a plane (2D projection) computed using Principal Components Analysis of a local neighborhood of the point in RGB space.

Parameters:

`[in]`	inR,inG,inB	color channels of the input image
`[out]`	outR,outG,outB	color channels of the output image
`[in]`	w,h	image dimensions
`[in]`	type	type=1 for 1D projection, type=2 for 2D projection
`[in]`	eitmax	stop criterion of the algorithm. The algorithm is iterated until the average difference of corresponding colors in two consecutive iterations is below eitmax
`[in]`	r	distance that defines the neighborhood of a color point (neighbors are RGB points at L1-distance below r)
`[in]`	rsim	distance defining a small neighborhood around each color point, it is used to speed up the algorithm. It must be much smaller than r, typically rsim=r/3

See also:: colorfiltering

Returns:: number of iterations of the algorithm

Definition at line 487 of file rgbcubeIPOL.cpp.

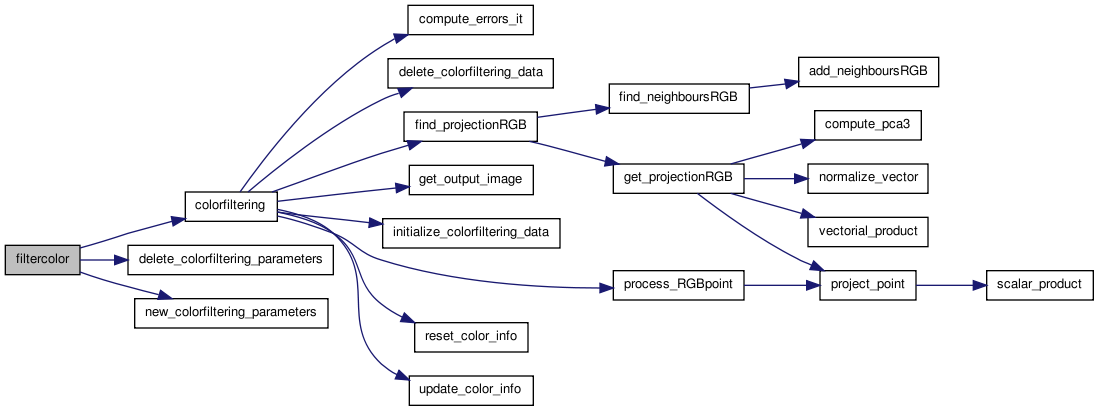

Here is the call graph for this function:

Here is the caller graph for this function:

void mergeimages	(	unsigned char *	in1R,
		unsigned char *	in1G,
		unsigned char *	in1B,
		unsigned char *	in2R,
		unsigned char *	in2G,
		unsigned char *	in2B,
		unsigned char *	outR,
		unsigned char *	outG,
		unsigned char *	outB,
		int	w,
		int	h
	)

Create a new image identical to the first input image except for pixels with (0, 0, 0) RGB value which are replaced by the pixels of the second input image.

Parameters:

`[in]`	in1R,in1G,in1B	color channels of the first input image
`[in]`	in2R,in2G,in2B	color channels of the second input image
`[out]`	outR,outG,outB	color channels of the output image
`[in]`	w,h	images size

Definition at line 517 of file rgbcubeIPOL.cpp.

Here is the caller graph for this function:

void PCAviews	(	unsigned char *	imR,
		unsigned char *	imG,
		unsigned char *	imB,
		int	w,
		int	h,
		unsigned char *	refR,
		unsigned char *	refG,
		unsigned char *	refB,
		int	wref,
		int	href,
		unsigned char *	im12R,
		unsigned char *	im12G,
		unsigned char *	im12B,
		unsigned char *	im13R,
		unsigned char *	im13G,
		unsigned char *	im13B,
		unsigned char *	im23R,
		unsigned char *	im23G,
		unsigned char *	im23B,
		int	wout,
		int	hout
	)

Create 3 images displaying the projections of the color cube of an image onto the 3 planes defined by the principal components of the color distribution in RGB space.

Parameters:

`[in]`	imR,imG,imB	color channels of the image whose color cube is to be projected
`[in]`	w,h	image dimensions
`[in]`	refR,refG,refB	color channels of the image whose color distribution is used to compute Principal Components (reference image)
`[in]`	wref,href	reference image dimensions
`[out]`	im12R,im12G,im12B	color channels of the image displaying the projection onto the plane defined by the first and second principal components
`[out]`	im13R,im13G,im13B	color channels of the image displaying the projection onto the plane defined by the first and third principal components
`[out]`	im23R,im23G,im23B	color channels of the image displaying the projection onto the plane defined by the second and third principal components
`[in]`	wout,hout	dimensions of the output images

See also:: projectRGBcube; compute_RGB_PCA

Definition at line 110 of file rgbcubeIPOL.cpp.

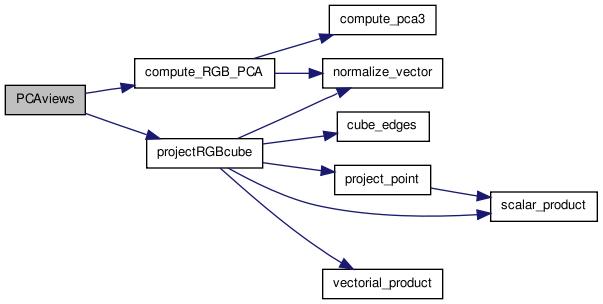

Here is the call graph for this function:

Here is the caller graph for this function:

void PCAviews_density	(	unsigned char *	imR,
		unsigned char *	imG,
		unsigned char *	imB,
		int	w,
		int	h,
		unsigned char *	refR,
		unsigned char *	refG,
		unsigned char *	refB,
		unsigned char *	im12R,
		unsigned char *	im12G,
		unsigned char *	im12B,
		unsigned char *	im13R,
		unsigned char *	im13G,
		unsigned char *	im13B,
		unsigned char *	im23R,
		unsigned char *	im23G,
		unsigned char *	im23B,
		int	wout,
		int	hout,
		int	rdst,
		unsigned char	cumdsty,
		unsigned char *	Idsty
	)

Create 3 images displaying the densities of the colors in the color cube of an image, projected onto the 3 planes defined by the principal components of the color distribution in RGB space.

Parameters:

`[in]`	imR,imG,imB	color channels of the image whose densities are to be displayed
`[in]`	refR,refG,refB	color channels of the image whose color distribution is used to compute Principal Components (reference image)
`[in]`	w,h	input image dimensions (= reference image dimensions)
`[out]`	im12R,im12G,im12B	color channels of the image displaying the projection onto the plane defined by the first and second principal components
`[out]`	im13R,im13G,im13B	color channels of the image displaying the projection onto the plane defined by the first and third principal components
`[out]`	im23R,im23G,im23B	color channels of the image displaying the projection onto the plane defined by the second and third principal components
`[in]`	wout,hout	dimensions of the output images
`[in]`	rdst	radius of neighborhood around each color point needed to compute its density
`[in]`	cumdsty	if cumdsty=1 display cumulated densities (X-rays projection), else display densities of color points
`[in]`	Idsty	grey scale image where each pixel is displayed with a grey level proportional to the density of its color in the original image

See also:: get_densityRGB_PCA

Definition at line 355 of file rgbcubeIPOL.cpp.

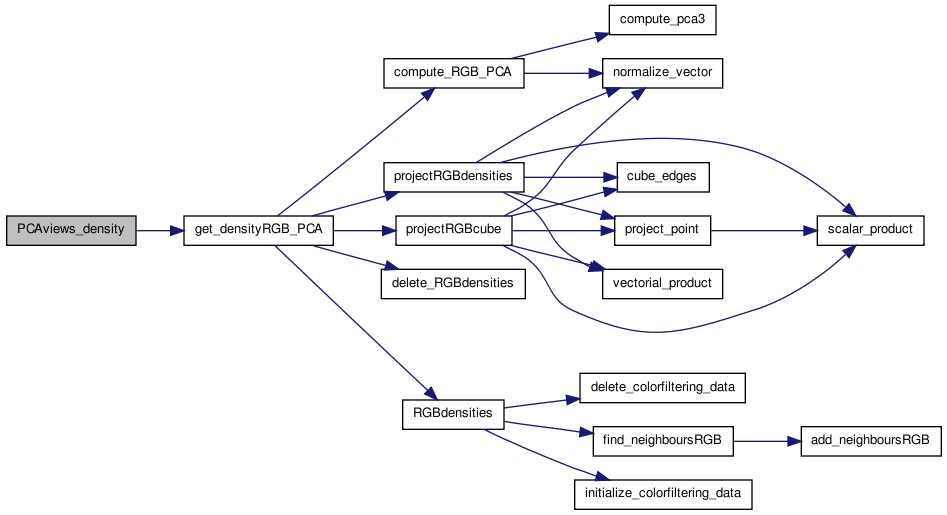

Here is the call graph for this function:

Here is the caller graph for this function:

void PCAviews_densityB	(	unsigned char *	imR,
		unsigned char *	imG,
		unsigned char *	imB,
		int	w,
		int	h,
		unsigned char *	refR,
		unsigned char *	refG,
		unsigned char *	refB,
		unsigned char *	im123R,
		unsigned char *	im123G,
		unsigned char *	im123B,
		int	wout,
		int	hout,
		int	rdst,
		unsigned char	cumdsty,
		unsigned char *	Idsty
	)

Concatenates into one single output image the 3 projections of the density of the RGB color distribution of an input image onto the 3 planes defined by the principal components of the color distribution of a reference image (eventually, reference and input images may be the same).

Parameters:

`[in]`	imR,imG,imB	color channels of the image whose densities are to be displayed
`[in]`	refR,refG,refB	color channels of the image whose color distribution is used to compute Principal Components(reference image)
`[in]`	w,h	input image dimensions (= reference image dimensions)
`[out]`	im123R,im123G,im123B	color channels of the image displaying the projections
`[in]`	wout,hout	dimensions of the image projections (output image size= (3 x wout) x hout )
`[in]`	rdst	radius of neighborhood around each color point needed to compute its density
`[in]`	cumdsty	if cumdsty=1 display cumulated densities (X-rays projection), else display densities of color points
`[in]`	Idsty	grey scale image where each pixel is displayed with a grey level proportional to the density of its color in the original image

See also:: get_densityRGB_PCA

Definition at line 409 of file rgbcubeIPOL.cpp.

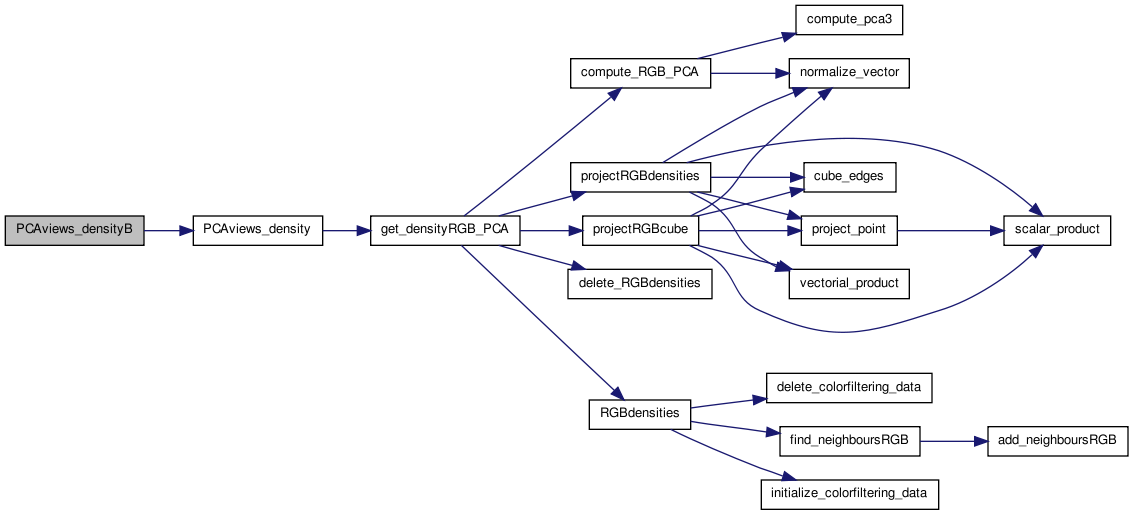

Here is the call graph for this function:

Here is the caller graph for this function:

void PCAviewsB	(	unsigned char *	imR,
		unsigned char *	imG,
		unsigned char *	imB,
		int	w,
		int	h,
		unsigned char *	refR,
		unsigned char *	refG,
		unsigned char *	refB,
		int	wref,
		int	href,
		unsigned char *	im123R,
		unsigned char *	im123G,
		unsigned char *	im123B,
		int	wout,
		int	hout
	)

Concatenates into one single output image the 3 projections of the RGB color distribution of an input image onto the 3 planes defined by the principal components of the color distribution of a reference image (eventually, reference and input images may be the same).

Parameters:

`[in]`	imR,imG,imB	color channels of the image whose color cube is to be projected (input image)
`[in]`	w,h	image dimensions
`[in]`	refR,refG,refB	color channels of the image whose color distribution is used to compute Principal Components(reference image)
`[in]`	wref,href	reference image dimensions
`[out]`	im123R,im123G,im123B	color channels of the output image
`[in]`	wout,hout	dimensions of the image projections (output image size= (3 x wout) x hout )

See also:: projectRGBcube; compute_RGB_PCA

Definition at line 163 of file rgbcubeIPOL.cpp.

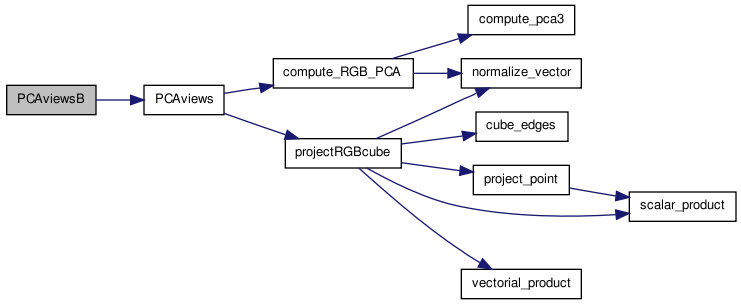

Here is the call graph for this function:

Here is the caller graph for this function:

void projectRGBcube	(	unsigned char *	R,
		unsigned char *	G,
		unsigned char *	B,
		int	npoints,
		unsigned char *	I,
		unsigned char *	Rout,
		unsigned char *	Gout,
		unsigned char *	Bout,
		int	wout,
		int	hout,
		float	M[3],
		float	u[3],
		float	v[3]
	)

Create image displaying the projection of the color cube of a color image onto a plane (rescale projected points to fit the output image size).

Parameters:

`[in]`	R,G,B	color channels of the input image
`[in]`	npoints	image size
`[in]`	I	if not NULL, draw pixel n with grey level I[n], else use color (R[n], G[n], B[n])
`[out]`	Rout,Gout,Bout	color channels of the output image
`[in]`	wout,hout	dimensions of the output image
`[in]`	M	origin of the plane
`[in]`	u,v	unitary vectors defining the coordinates system of the projection plane

Definition at line 1192 of file rgbcubeIPOL.cpp.

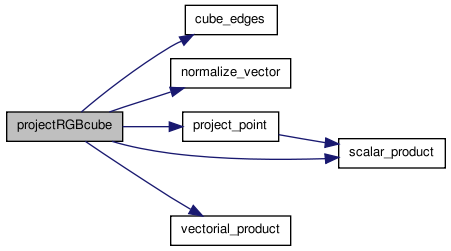

Here is the call graph for this function:

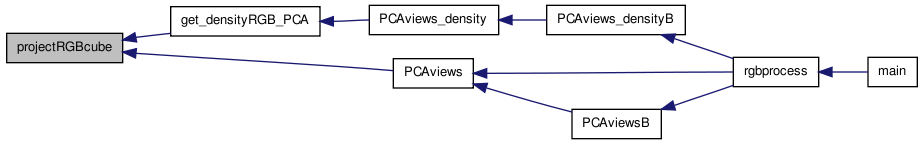

Here is the caller graph for this function:

void projectRGBcubeB	(	unsigned char *	R,
		unsigned char *	G,
		unsigned char *	B,
		int	npoints,
		unsigned char *	I,
		unsigned char *	Rout,
		unsigned char *	Gout,
		unsigned char *	Bout,
		int	wout,
		int	hout,
		float	M[3],
		float	u[3],
		float	v[3]
	)

Create image displaying the projection of the color cube of a color image onto a plane (in this case the center of projection is located at the center of the output image, which was not necessarily the case in 'projectRGBcube').

Parameters:

`[in]`	R,G,B	color channels of the input image
`[in]`	npoints	image size
`[in]`	I	if not NULL, draw pixel n with grey level I[n], else use color (R[n], G[n], B[n])
`[out]`	Rout,Gout,Bout	color channels of the output image
`[in]`	wout,hout	dimensions of the output image
`[in]`	M	origin of the plane
`[in]`	u,v	unitary vectors defining the coordinates system of the projection plane

Definition at line 1355 of file rgbcubeIPOL.cpp.

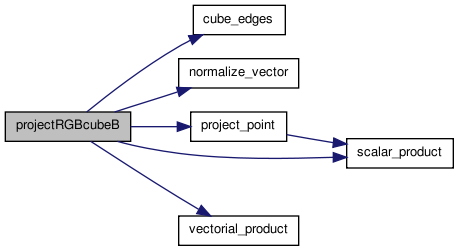

Here is the call graph for this function:

Here is the caller graph for this function:

void projectRGBdensities	(	unsigned char *	R,
		unsigned char *	G,
		unsigned char *	B,
		int	npoints,
		unsigned char *	Rout,
		unsigned char *	Gout,
		unsigned char *	Bout,
		int	wout,
		int	hout,
		float	M[3],
		float	u[3],
		float	v[3],
		float ***	dsty,
		float &	maxdsty,
		unsigned char	logscale
	)

Create image displaying the projection of the color cube of a color image onto a plane. Each output image pixel is displayed with a grey level proportional to the cumulated color density of the points projected onto that pixel (X-rays projection).

Parameters:

`[in]`	R,G,B	color channels of the input image
`[in]`	npoints	number of image pixels=number of color points
`[out]`	Rout,Gout,Bout	color channels of the output image
`[in]`	wout,hout	dimensions of the output image
`[in]`	M	origin of the plane
`[in]`	u,v	unitary vectors defining the coordinates system of the projection plane
`[in]`	dsty	densities of the color points
`[in]`	maxdsty	maximum density value (if unknown maxdsty=0)
`[in]`	logscale	if logscale=1 display values using logarithmic scale, otherwise use linear scale

Definition at line 1515 of file rgbcubeIPOL.cpp.

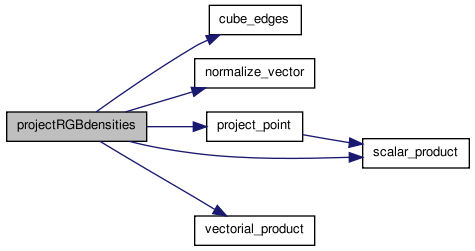

Here is the call graph for this function:

Here is the caller graph for this function:

void RGBcube2PLY	(	unsigned char *	R,
		unsigned char *	G,
		unsigned char *	B,
		int	npoints,
		unsigned char *	I,
		const char *	nameout
	)

Create a PLY file storing the RGB color cube (including its edges) (optionally displaying density information).

Parameters:

`[in]`	R,G,B	color channels of the input image
`[in]`	npoints	image size
`[in]`	I	if <> NULL, draw pixel n with grey level I[n], else use color (R[n], G[n], B[n])
`[out]`	nameout	output file name (PLY file format)

Definition at line 1739 of file rgbcubeIPOL.cpp.

Here is the call graph for this function:

void RGBcube2VRML2	(	unsigned char *	R,
		unsigned char *	G,
		unsigned char *	B,
		int	npoints,
		unsigned char *	I,
		const char *	nameout
	)

Create a VRML2.0 file storing the RGB color cube (including its edges) (optionally displaying density information).

Parameters:

`[in]`	R,G,B	color channels of the input image
`[in]`	npoints	image size
`[in]`	I	if <> NULL, draw pixel n with grey level I[n], else use color (R[n], G[n], B[n])
`[out]`	nameout	output file name (VRML2.0 file format)

Definition at line 1806 of file rgbcubeIPOL.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

int RGBviews_sequence	(	unsigned char *	imR,
		unsigned char *	imG,
		unsigned char *	imB,
		int	win,
		int	hin,
		unsigned char ***	viewsR,
		unsigned char ***	viewsG,
		unsigned char ***	viewsB,
		int	wview,
		int	hview,
		unsigned char	displayDensity
	)

Generate a rotating sequence of views of the RGB cube.

Parameters:

`[in]`	imR,imG,imB	color channels of the input image
`[in]`	win,hin	dimensions of the input image
`[out]`	viewR,viewG,viewB	color channels of the views
`[in]`	wview,hview	dimensions of the views
`[in]`	displayDensity	if active display grey levels proportional (logaritmic scale) to the density of the color points, else display actual RGB values

Returns:: number of views in the sequence

Definition at line 604 of file rgbcubeIPOL.cpp.

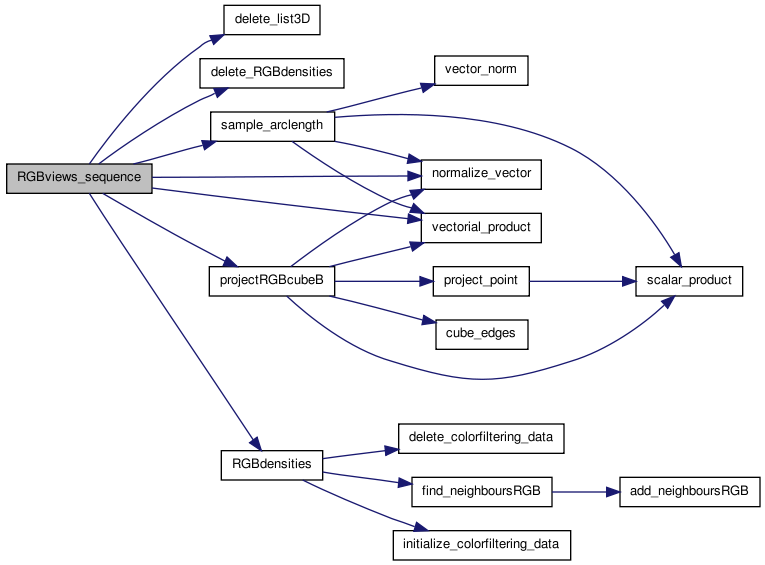

Here is the call graph for this function:

int RGBviews_sequence_params ( const char * paramsfile )

Generate the parameters of the projection planes for a rotating sequence of views of the RGB cube.

Parameters:

[out] paramsfile output file name (text file)

Returns:: number of views in the sequence

Definition at line 819 of file rgbcubeIPOL.cpp.

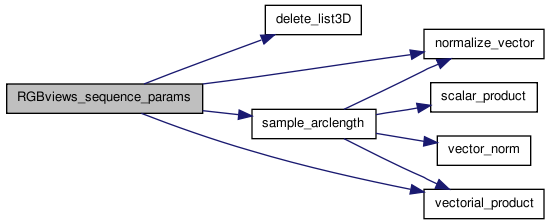

Here is the call graph for this function:

Here is the caller graph for this function:

void rmHighGradHue	(	unsigned char *	imR,
		unsigned char *	imG,
		unsigned char *	imB,
		unsigned char *	lowR,
		unsigned char *	lowG,
		unsigned char *	lowB,
		unsigned char *	highR,
		unsigned char *	highG,
		unsigned char *	highB,
		int	w,
		int	h,
		float	thgrad,
		float	thsat
	)

cppcode/rgbcubeIPOL.h File Reference

Functions

Function Documentation
