io_png/io_png.c File Reference

PNG read/write simplified interface. More...

#include <stdlib.h>
#include <stdio.h>
#include <math.h>
#include <assert.h>
#include <png.h>
#include "io_png.h"

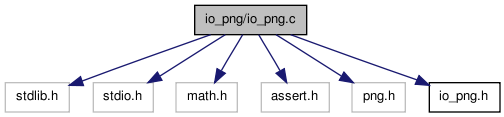

Include dependency graph for io_png.c:

Go to the source code of this file.

Defines
#define	PNG_SIG_LEN 4
#define	IO_PNG_U8 0x0001
#define	IO_PNG_F32 0x0002
Functions
static void *	read_png_abort (FILE fp, png_structp png_ptr_p, png_infop *info_ptr_p)
	internal function used to cleanup the memory when png_read_raw() fails
static void *	read_png_raw (const char fname, size_t nx, size_t ny, size_t nc, int transform, int dtype)
	internal function used to read a PNG file into an array
unsigned char *	read_png_u8 (const char fname, size_t nx, size_t ny, size_t nc)
	read a PNG file into a 8bit integer array
unsigned char *	read_png_u8_rgb (const char fname, size_t nx, size_t *ny)
	read a PNG file into a 8bit integer array, converted to RGB
unsigned char *	read_png_u8_gray (const char fname, size_t nx, size_t *ny)
	read a PNG file into a 8bit integer array, converted to gray
float *	read_png_f32 (const char fname, size_t nx, size_t ny, size_t nc)
	read a PNG file into a 32bit float array
float *	read_png_f32_rgb (const char fname, size_t nx, size_t *ny)
	read a PNG file into a 32bit float array, converted to RGB
float *	read_png_f32_gray (const char fname, size_t nx, size_t *ny)
	read a PNG file into a 32bit float array, converted to gray
static int	write_png_abort (FILE fp, png_byte idata, png_bytep row_pointers, png_structp png_ptr_p, png_infop *info_ptr_p)
	internal function used to cleanup the memory when png_write_raw() fails
static int	write_png_raw (const char fname, const void data, size_t nx, size_t ny, size_t nc, int dtype)
	internal function used to write a byte array as a PNG file
int	write_png_u8 (const char fname, const unsigned char data, size_t nx, size_t ny, size_t nc)
	write a 8bit unsigned integer array into a PNG file
int	write_png_f32 (const char fname, const float data, size_t nx, size_t ny, size_t nc)
	write a float array into a PNG file

Detailed Description

PNG read/write simplified interface.

This is a front-end to libpng, with routines to:

read a PNG file as a deinterlaced 8bit integer or float array
write a 8bit integer or float array to a PNG file

Multi-channel images are handled : grey, grey+alpha, rgb and rgb+alpha, as well as on-the-fly color model conversion.

Todo:

handle lossless 16bit data

add a test suite

internally handle RGB/gray conversion in read_png_raw()

handle deinterlacing as a libpng transform function

Author:: Nicolas Limare <nicolas.limare@cmla.ens-cachan.fr>

Definition in file io_png.c.

Define Documentation

#define IO_PNG_F32 0x0002

Definition at line 79 of file io_png.c.

#define IO_PNG_U8 0x0001

Definition at line 78 of file io_png.c.

#define PNG_SIG_LEN 4

Definition at line 75 of file io_png.c.

Function Documentation

static void* read_png_abort	(	FILE *	fp,
		png_structp *	png_ptr_p,
		png_infop *	info_ptr_p
	)			`[static]`

internal function used to cleanup the memory when png_read_raw() fails

Parameters:

	fp	file pointer to close, ignored if NULL
	png_ptr_p,info_ptr_p,pointers	to PNG structure pointers, ignored if NULL

Returns:: NULL

Definition at line 94 of file io_png.c.

Here is the caller graph for this function:

float* read_png_f32	(	const char *	fname,
		size_t *	nx,
		size_t *	ny,
		size_t *	nc
	)

read a PNG file into a 32bit float array

The array contains the deinterlaced channels. 1, 2, 4 and 8bit images are converted to float values between 0. and 1., 3., 15. or 255. 16bit images are also downscaled to 8bit before conversion.

Parameters:

	fname	PNG file name
	nx,ny,nc	pointers to variables to be filled with the number of columns, lines and channels of the image

Returns:: pointer to an allocated unsigned char array of pixels, or NULL if an error happens

Definition at line 379 of file io_png.c.

Here is the call graph for this function:

float* read_png_f32_gray	(	const char *	fname,
		size_t *	nx,
		size_t *	ny
	)

read a PNG file into a 32bit float array, converted to gray

See read_png_f32() for details.

Definition at line 432 of file io_png.c.

Here is the call graph for this function:

float* read_png_f32_rgb	(	const char *	fname,
		size_t *	nx,
		size_t *	ny
	)

read a PNG file into a 32bit float array, converted to RGB

See read_png_f32() for details.

Definition at line 391 of file io_png.c.

Here is the call graph for this function:

static void* read_png_raw	(	const char *	fname,
		size_t *	nx,
		size_t *	ny,
		size_t *	nc,
		int	transform,
		int	dtype
	)			`[static]`

internal function used to read a PNG file into an array

Todo:: don't loose 16bit info

Parameters:

	fname	PNG file name, "-" means stdin
	nx,ny,nc	pointers to variables to be filled with the number of columns, lines and channels of the image
	transform	a PNG_TRANSFORM to be added to the default read transforms
	dtype	identifier for the data type to be used for output

Returns:: pointer to an allocated array of pixels, or NULL if an error happens

Definition at line 116 of file io_png.c.

Here is the call graph for this function:

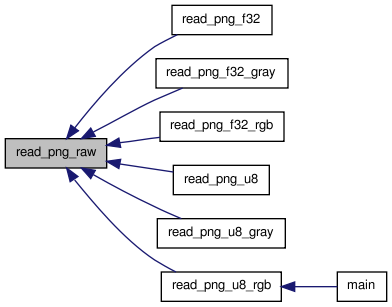

Here is the caller graph for this function:

unsigned char* read_png_u8	(	const char *	fname,
		size_t *	nx,
		size_t *	ny,
		size_t *	nc
	)

read a PNG file into a 8bit integer array

The array contains the deinterlaced channels. 1, 2 and 4bit images are converted to 8bit. 16bit images are previously downscaled to 8bit.

Todo:: don't downscale 16bit images.

Parameters:

	fname	PNG file name
	nx,ny,nc	pointers to variables to be filled with the number of columns, lines and channels of the image

Returns:: pointer to an allocated unsigned char array of pixels, or NULL if an error happens

Definition at line 269 of file io_png.c.

Here is the call graph for this function:

unsigned char* read_png_u8_gray	(	const char *	fname,
		size_t *	nx,
		size_t *	ny
	)

read a PNG file into a 8bit integer array, converted to gray

See read_png_u8() for details.

Definition at line 324 of file io_png.c.

Here is the call graph for this function:

unsigned char* read_png_u8_rgb	(	const char *	fname,
		size_t *	nx,
		size_t *	ny
	)

read a PNG file into a 8bit integer array, converted to RGB

See read_png_u8() for details.

Definition at line 282 of file io_png.c.

Here is the call graph for this function:

Here is the caller graph for this function:

static int write_png_abort	(	FILE *	fp,
		png_byte *	idata,
		png_bytep *	row_pointers,
		png_structp *	png_ptr_p,
		png_infop *	info_ptr_p
	)			`[static]`

internal function used to cleanup the memory when png_write_raw() fails

Parameters:

	fp	file pointer to close, ignored if NULL
	idata,row_pointers	arrays to free, ignored if NULL
	png_ptr_p,info_ptr_p,pointers	to PNG structure pointers, ignored if NULL

Returns:: -1

Definition at line 486 of file io_png.c.

Here is the caller graph for this function:

int write_png_f32	(	const char *	fname,
		const float *	data,
		size_t	nx,
		size_t	ny,
		size_t	nc
	)

write a float array into a PNG file

The float values are rounded to 8bit integers, and bounded to [0, 255].

Todo:: handle 16bit images and flexible min/max

Parameters:

	fname	PNG file name
	data	array to write
	nx,ny,nc	number of columns, lines and channels of the image

Returns:: 0 if everything OK, -1 if an error occured

Definition at line 700 of file io_png.c.

Here is the call graph for this function:

static int write_png_raw	(	const char *	fname,
		const void *	data,
		size_t	nx,
		size_t	ny,
		size_t	nc,
		int	dtype
	)			`[static]`

internal function used to write a byte array as a PNG file

The PNG file is written as a 8bit image file, interlaced, truecolor. Depending on the number of channels, the color model is gray, gray+alpha, rgb, rgb+alpha.

Todo:: handle 16bit

Parameters:

	fname	PNG file name, "-" means stdout
	data	deinterlaced (RRR..GGG..BBB..AAA) image byte array
	nx,ny,nc	number of columns, lines and channels
	dtype	identifier for the data type to be used for output
